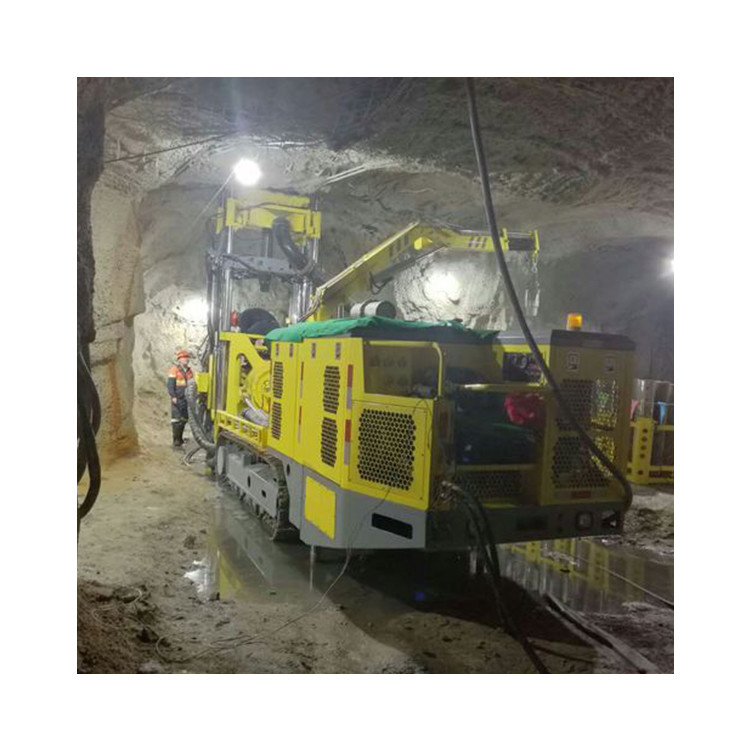

400m Max Depth Raise Bore Machine High Accuracy Drilling Rig Equipment

Brand Name : Beijun

Model Number : CY-R80

Certification : CE,ISO

Place of Origin : China

MOQ : 1

Price : USD 280000-300000 Set

Payment Terms : L/C, T/T

Supply Ability : 1000 Set/Sets per Month

Delivery Time : 14 days

Packaging Details : Customized packaging

nominal raise diameter : 2000mm

maximum raise diameter : 2500mm

2nd raise diameter : 3500mm

maximum raise depth : 400m

pilot hole : 241°

drill angle from horizontal : 60~90mm

Contact Now

400m Max Depth High Return Drilling Rig Equipment Hydraulic Raise Boring Mining Machine

Function Characteristics

FOUR-POSTER TOW-CYLINDER LOWER STRUCTURE

The CYR series RBM adopted an international mainstreampillar structure. It

features reliable operation, fast mounting and dismounting. convenient maintenance

and small working space.

PATENTED TECHNOLOGY AND HIGHHLEVEL CONFIGURATION

Our large number of patented technology and numbers of international well

known components(such as electric parts, hydraulic parts. transmission parts) are

Included in the RBM.Compared with same kinds of products. ours are more reliable

and more durable.

TWO DRILLING MODES AND THREE OPERATION MODES

The control system supports two drilling modes(high accuracy drilling mode and

fast speed drilling mode) and three operation modes(manual operation, wireless

operation and wired operation).The user can select drilling mode according to accuracy

requirement and geological conditions and select operation mode according to

operating position and the actual situation.

RCS INTELLIGENT CONTROL SYSTEM

The CYR series RBM installs RCS intelligent control system with safety protection.

automatic operation,fault diagnose.data storage. Internet communications,digital display

and so on(see specification of RCS intelligent control system).

Performance Parameter

unite CY-R80 CY-R120 CY-R 120D
operation nominal raise diameter mm 2000 3000 3000
maximum raise diameter mm 2500 3500 3500
2nd raise diameter mm 3500 4500 4500
maximum raise depth m 400 200 400
pilot hole ° 241 280 280
drill angle from horizontal mm 60~90 60~90 60~90
propulsion feed force kN 1017@35MPa 1940@35MPa 2528@35MPa
lifting force kN 2425@35MPa 1940@35MPa 4310@35MPa
feed distance mm 1 450 1455 1440
rotation nomianl torque kN.m 82 168 168
peak torque kN.m 94 192 192
rotation speed r/min 0~30 0~24 0~24
power volfage V standard: 380 (optional: 660/1000/1 140)
motor power kW 90 132 132
